Quality – throughout the entire process

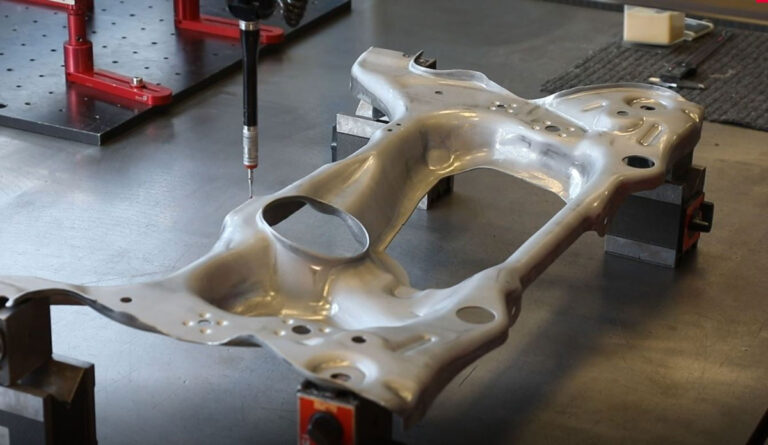

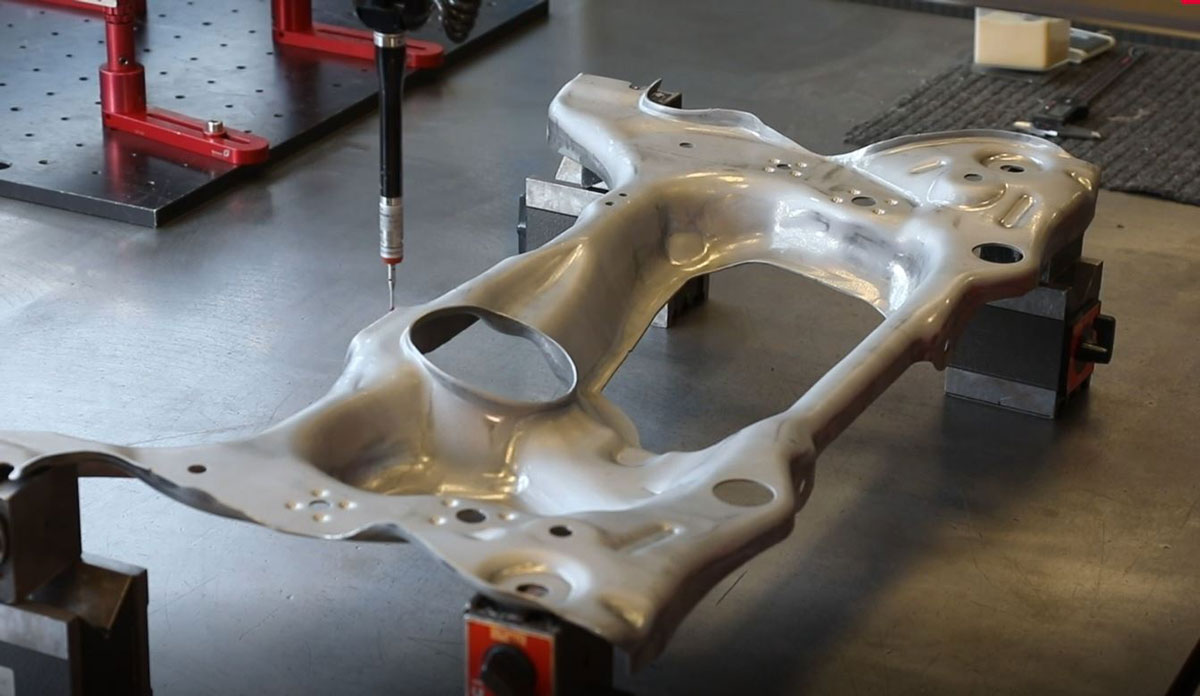

Quality assurance is an essential tool in prototype production. By using the appropriate monitoring systems, an early implementation analysis is possible, which influences the further production steps and allows conclusions to be drawn for the series process. Quick decisions and error corrections lead to the adjustment and optimization of the manufacturing process. This is supported by our 3D CNC measuring technology.

Regular audits and DIN EN ISO 9001:2015 certification are additional components of our quality assurance system.

An essential tool in prototype production

Range of services

  • Irregulare and geometrical shapes measurements
  • Single part and serial measurements
  • Reengineering
  • Quality documentation according to customer requirements
  • Drafting of control and inspection plans
  • Production process monitoring
  • Measuring equipment monitoring
  • Quality management system according to DIN EN ISO 9001:2015
  • Assurance by internal and external audits

Technical data

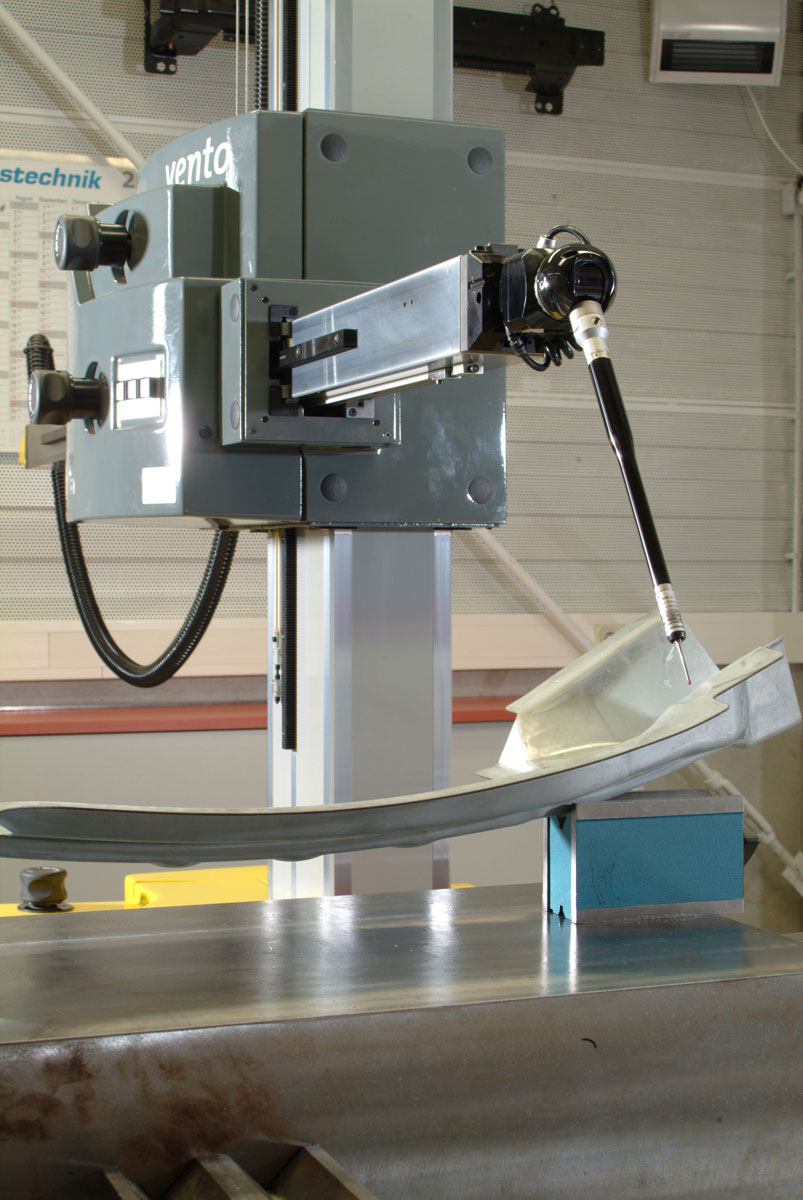

Manually guided 3D horizontal arm measuring machine

  • Accuracy U1=0.05+(L/2500)
  • Measuring range 2370 x 800 x 800 mm with tactile Renishaw system

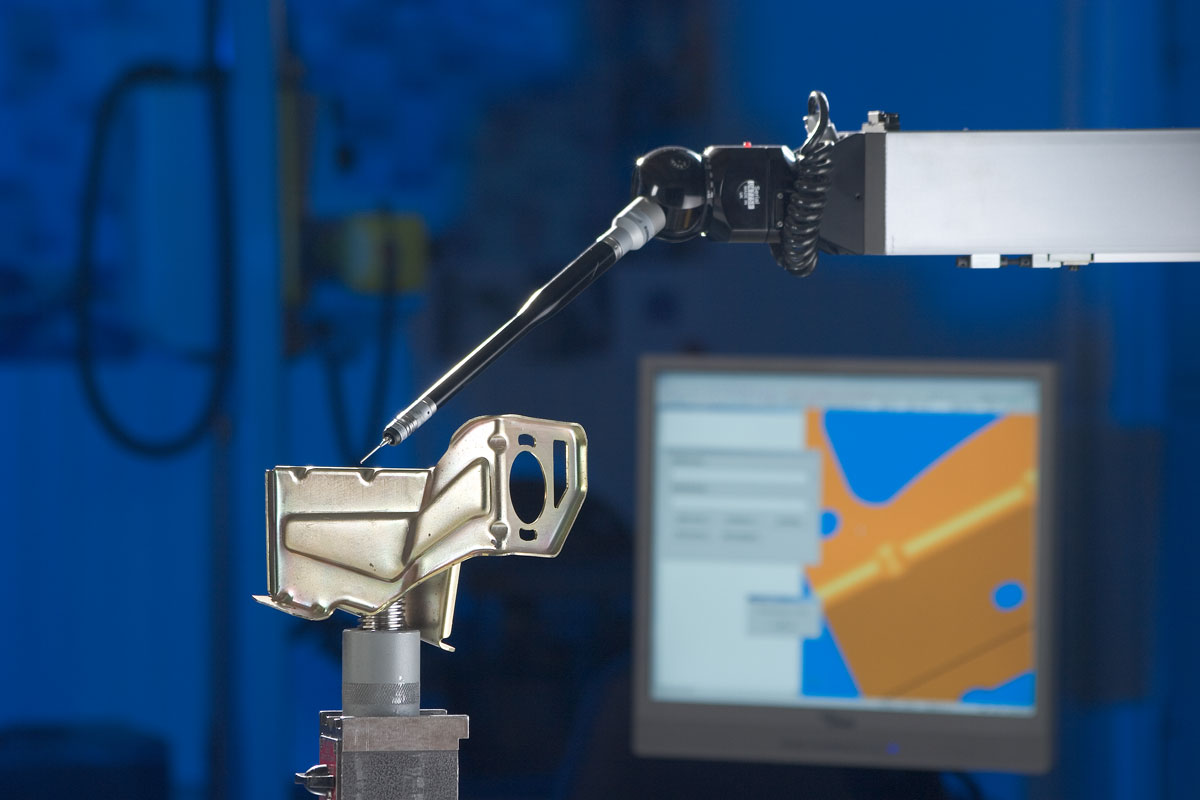

CNC controlled 3D horizontal arm measuring machine

  • Accuracy MPE 23 µm+(L/66.6 mm)
  • Measuring range 3500 x 1400 x 1600 mm with tactile Renishaw system

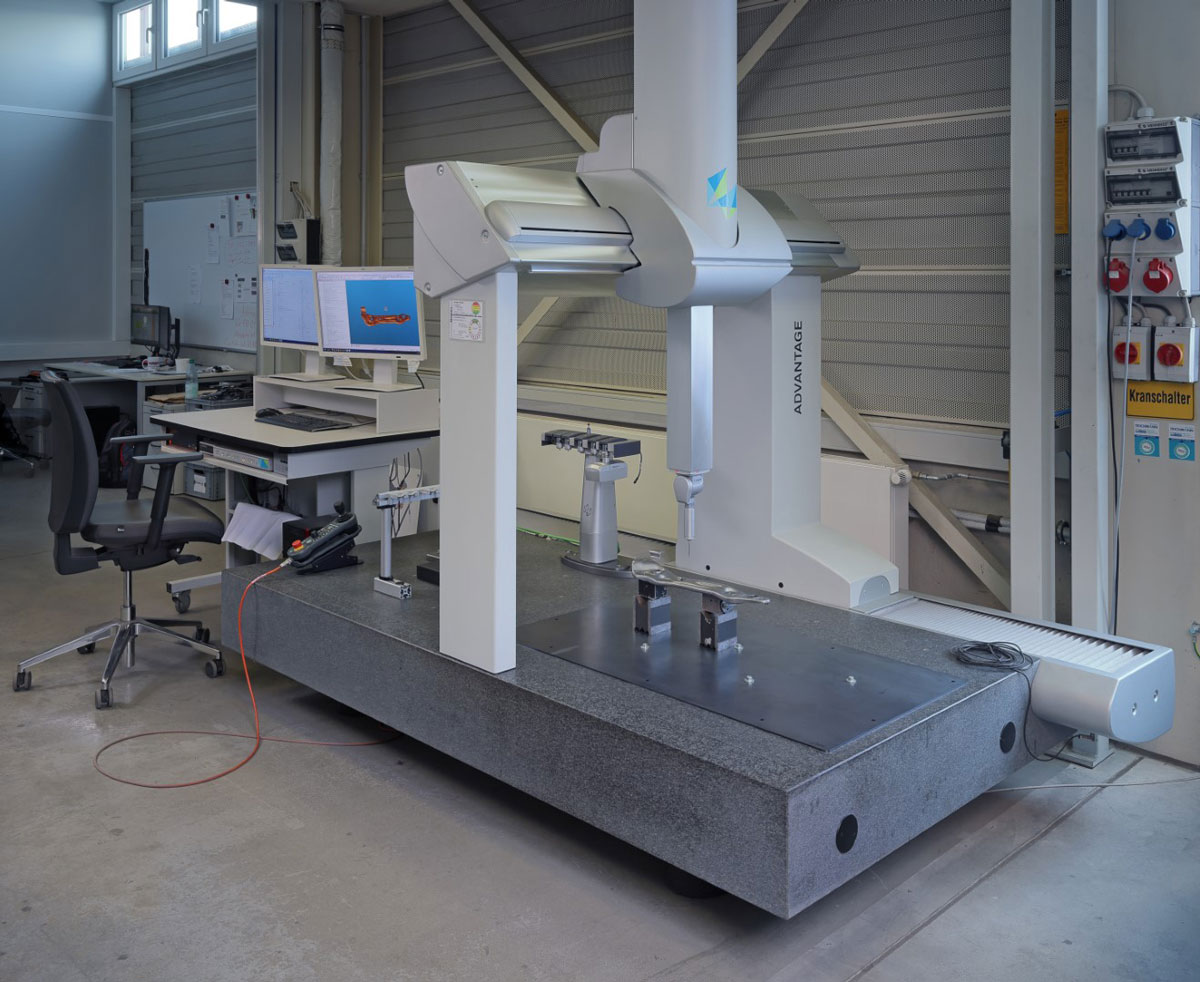

CNC controlled 3D portal measuring machine

  • Accuracy MPE 1.4 µm+(1xL/333 mm)
  • Measuring range 900 x 1500 x 800mm with tactile scanning Tesa system

CMS optical line laser sensor

  • Accuracy ± 20µm, applicable on both CNC controlled measuring machines

PC-DMIS measurement and documentation software

References from quality assurance

As a development partner to the automotive and supplier industry, equipment and medical technology and various other industrial sectors, we combine our many years of experience with constant innovations and the latest technologies.
